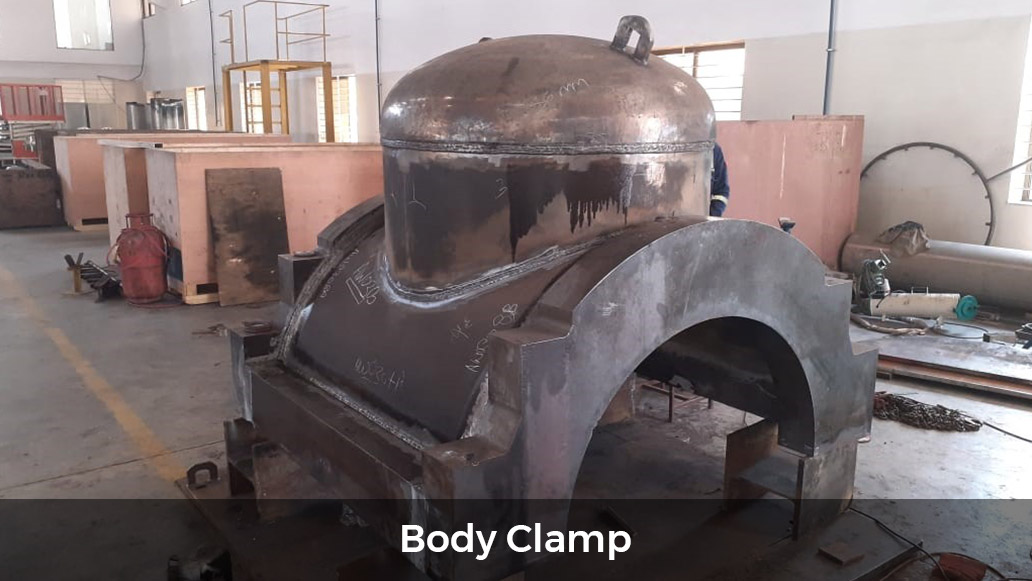

Body Clamp
For High-Pressure Propene Gas Piping in ROGC plant- Procurement, Fabrication, Machining & Assembly of 46” Body clamp. Design by Hydra tight -Germany
Approx. Weight- 7.5MT.
Material: SA 516 Gr. 70 & SA 105 (Plate Thk – 150, 220mm thk).

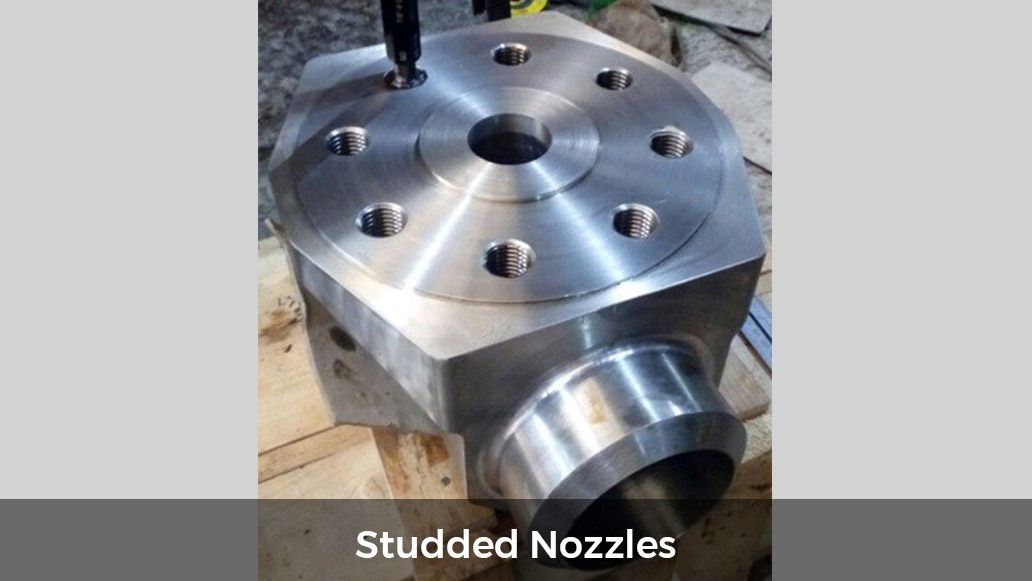

Studded Nozzles
Designing, Machining & Supply of Pressure Tapping Studded Nozzles for J3- SEZ & DTA Gasification Island.
Size: 3”, 4”, 5”, 6” & 8” NB.
Material: SA 182 GR F304/304L (Dual Certified)

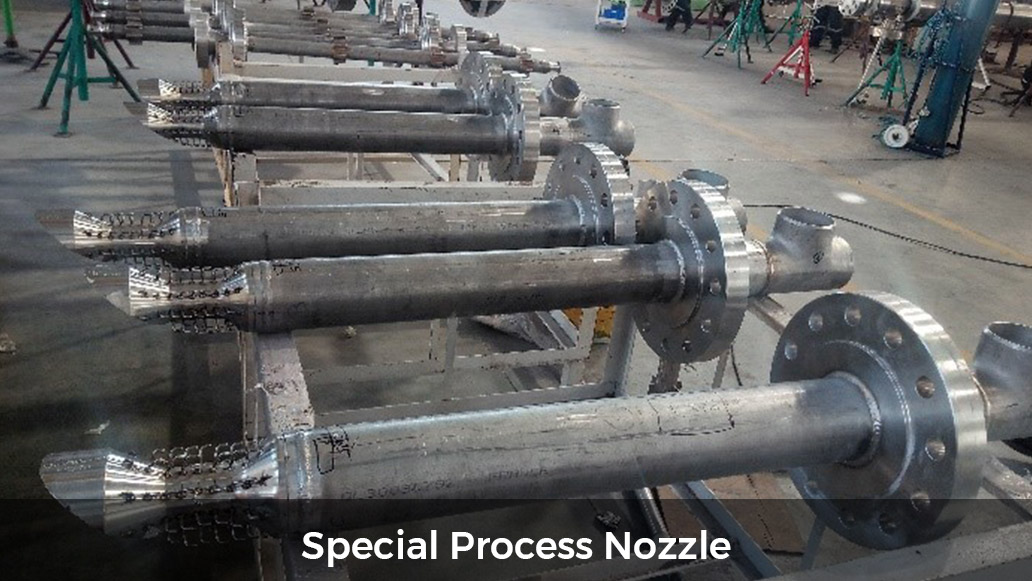

Special Process Nozzle
Fabrication & Supply of Special Process Nozzles for RIL-J3- SEZ & DTA Gasification Island.
Material Grade: Combination of SS347 & SS 304L.
Supply Includes Machining, Fabrication, NDT (RT/PT), Trial-Assembly, Hydrotest, Refractory lining.
Qty: 20 nos.

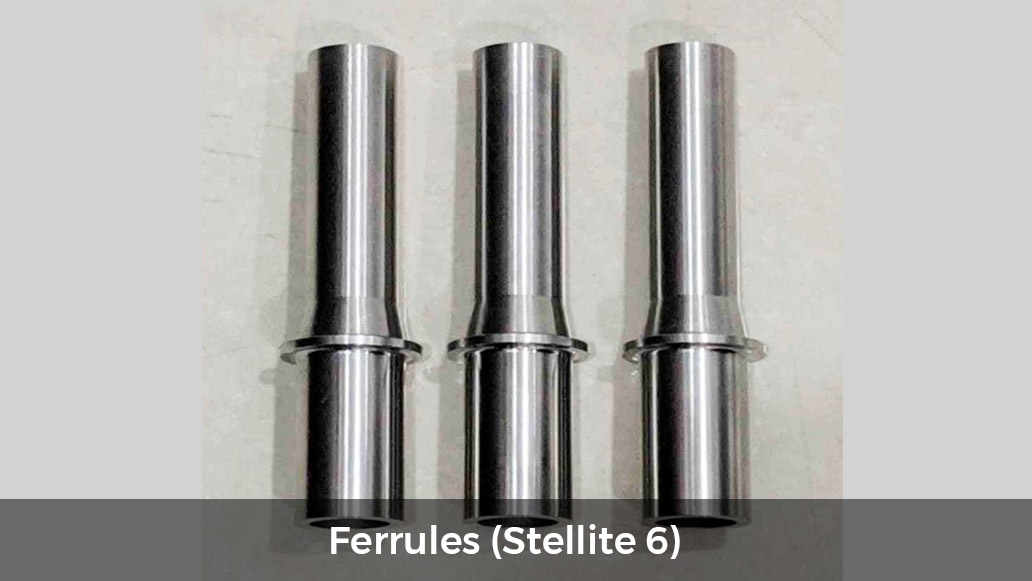

Ferrules (Stellite 6)
Die-Casting, Machining & Supply of Special Process Ferrules for RIL-J3- SEZ & DTA Gasification Island.
Material Grade: Stellite-6
Supply Includes, Machining, NDT, Critical Profile & Dimension measurement

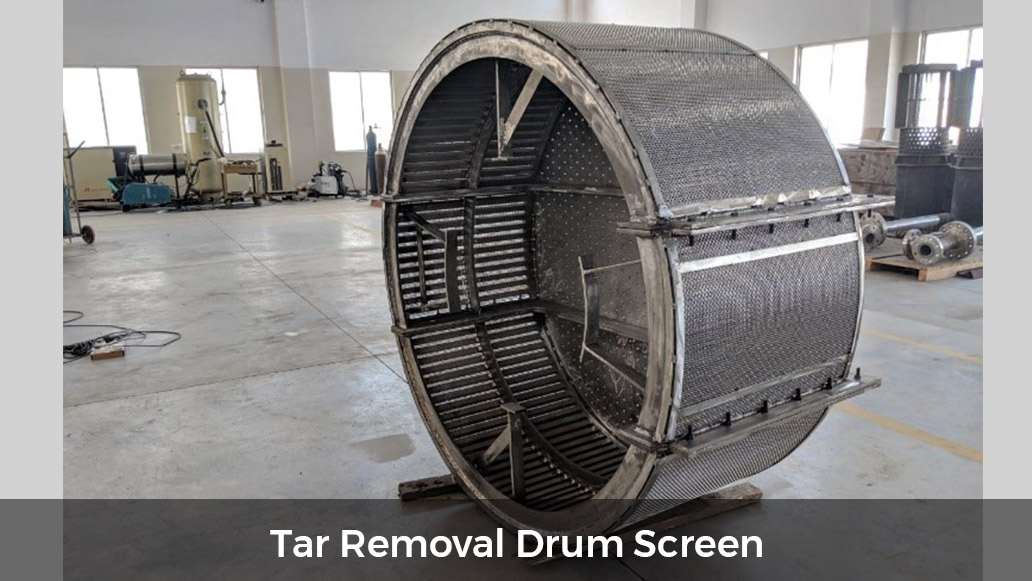

Tar Removal Drum Screen
3 Segment Fabrication & Supply of Tar Removal drum screen.
Material Grade: SS316L
For RIL J3- SEZ & DTA Gasification Island.
Decanter Screens
Fabrication & Supply of Decanter screen (using Johnson Screens)
Material Grade: SS316L for Slag dewatering Tank in RIL J3- SEZ & DTA Gasification Island.
