Farabi Yanbu - Sulphuric Acid Production Unit
Fabrication & supply of following Pressure vessels to Saudi Arabia

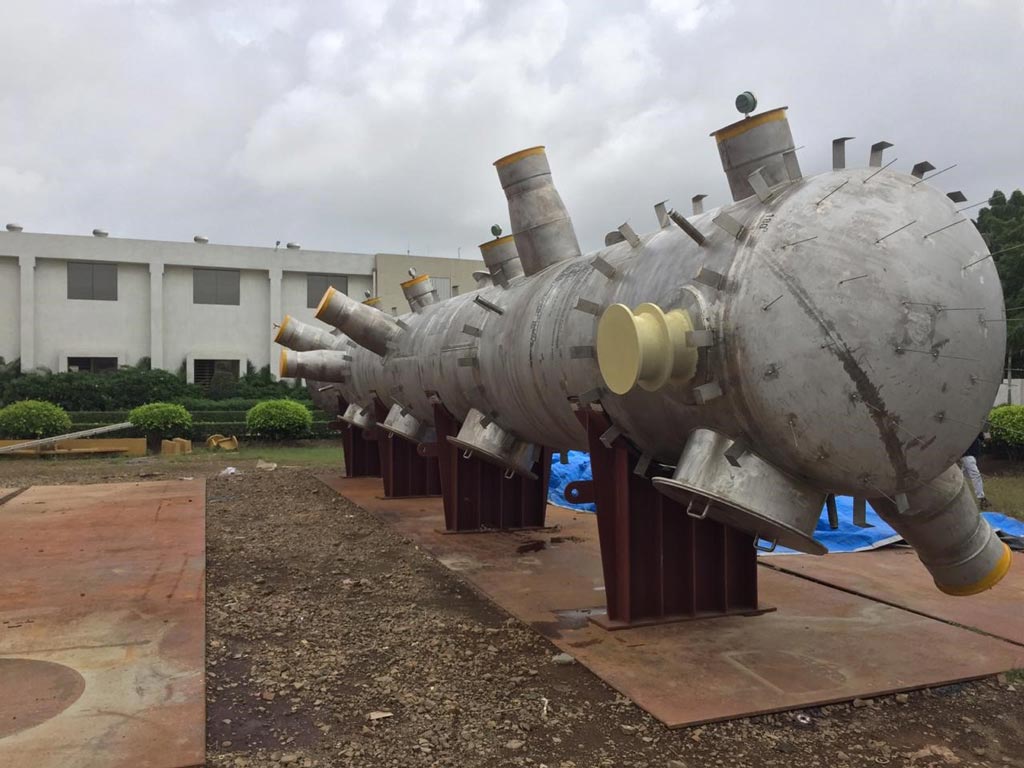

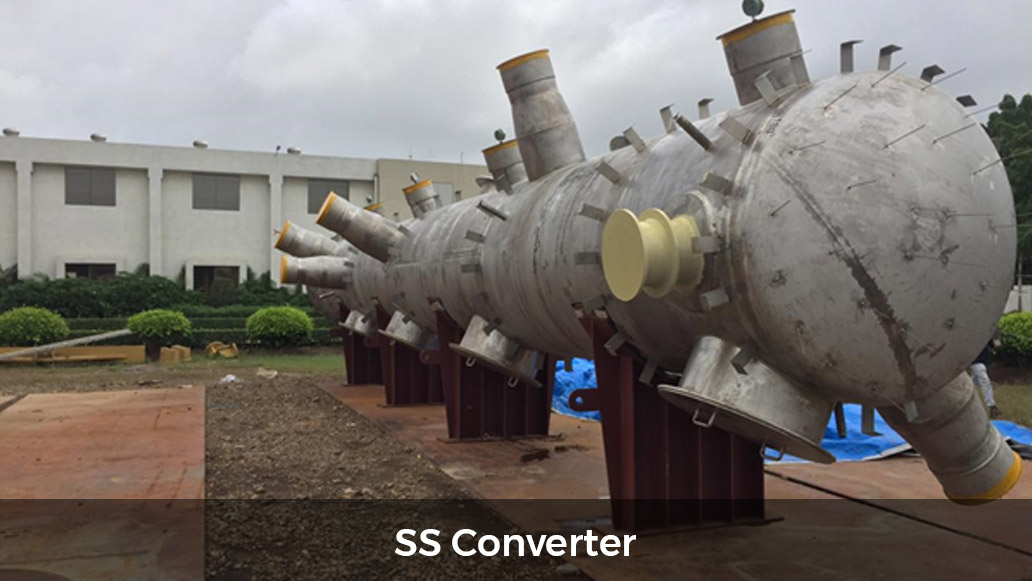

- SS Converter: Grade SS304 (Min 0.04% C), Dia 1.6M, 8mm Thk, 14M Long, Weight-14.5 MT

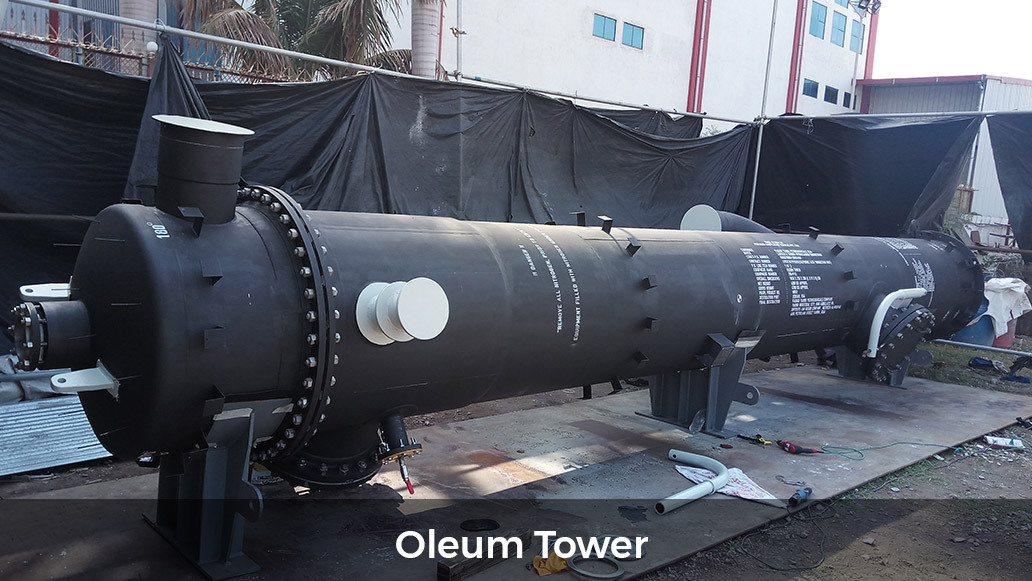

- Oleum Tower: Grade SS304L, Dia1.1, 6mm Thk, 10M Long, Weight-4.5 MT
- Atmospheric Boiler Blow Down Drum (ASME Code Stamp): Grade SA516
- GR70, Dia 2.1M, 10mm Thk, 7.3M long, Weight-5.5 MT

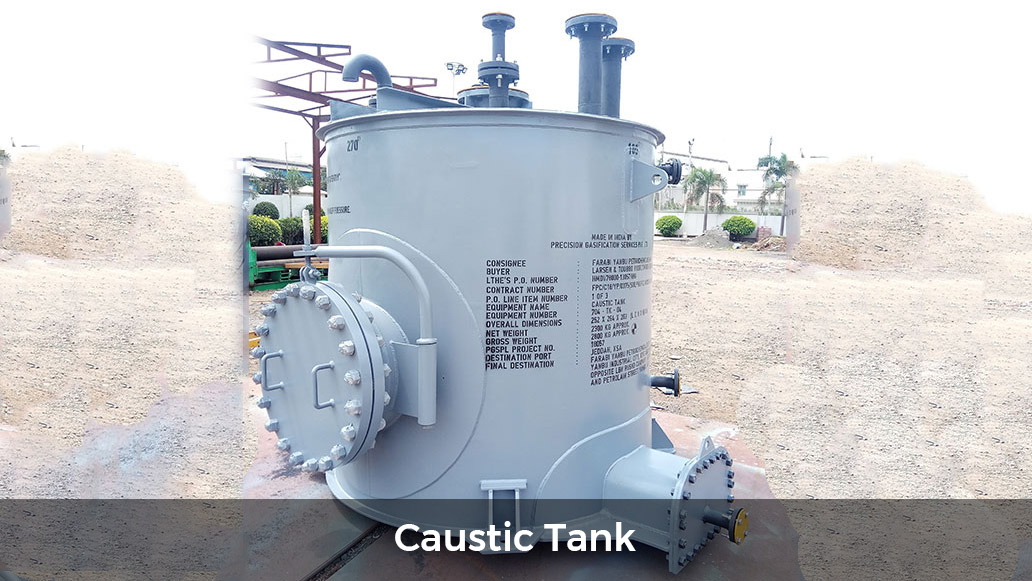

- 0.20% Caustic Tank: Grade SA516 GR70+316L(Nozzles), Dia 1.8M, 6mm thk, 2M Long, Weight- 2.3MT

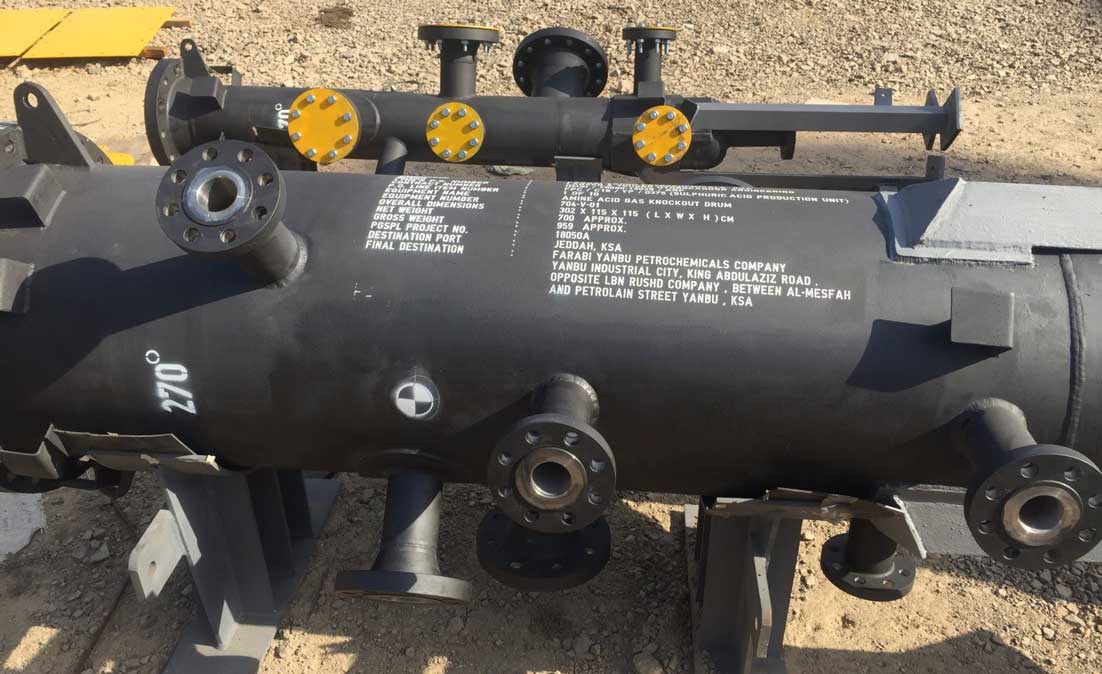

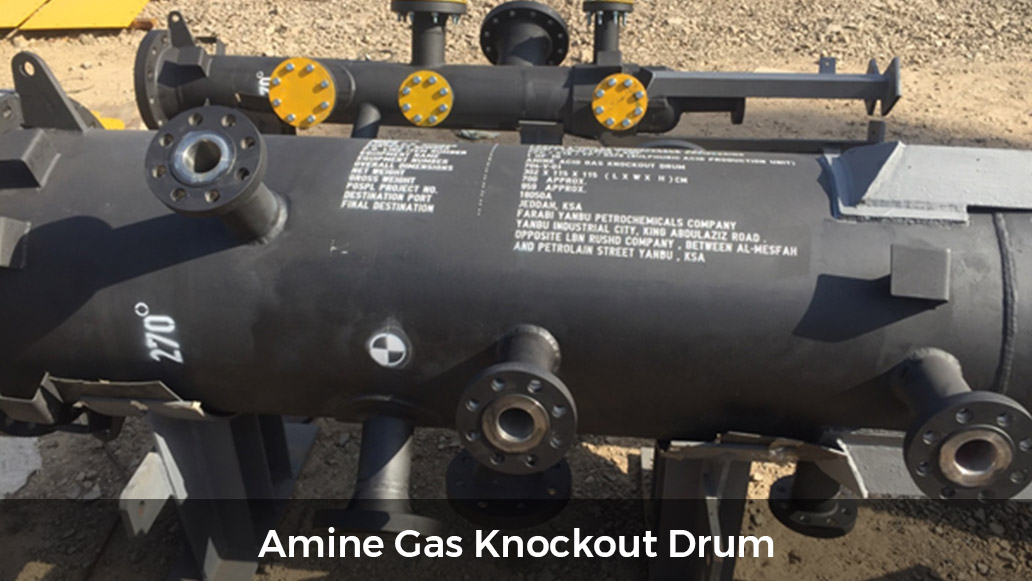

- Amine Acid Gas Knockout Drum: Grade SS316L(NACE), Dia 0.5M, 8mm Thk, 3M Long, Weight- 1 MT

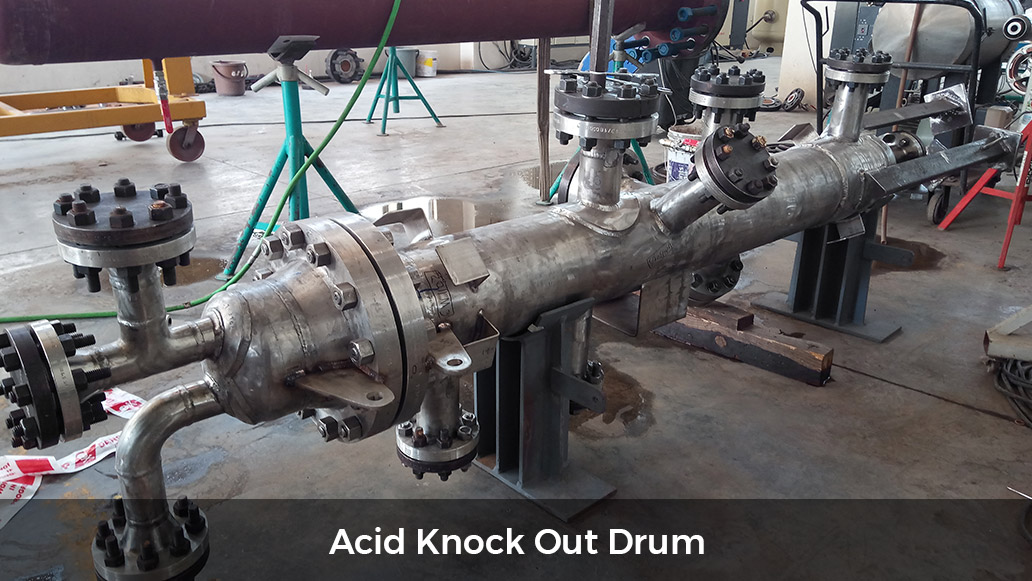

- SWS Acid Knockout Drum: Grade SS316L(NACE), Dia 0.2M, 8mm Thk, 3M Long, Weight-0.5 MT

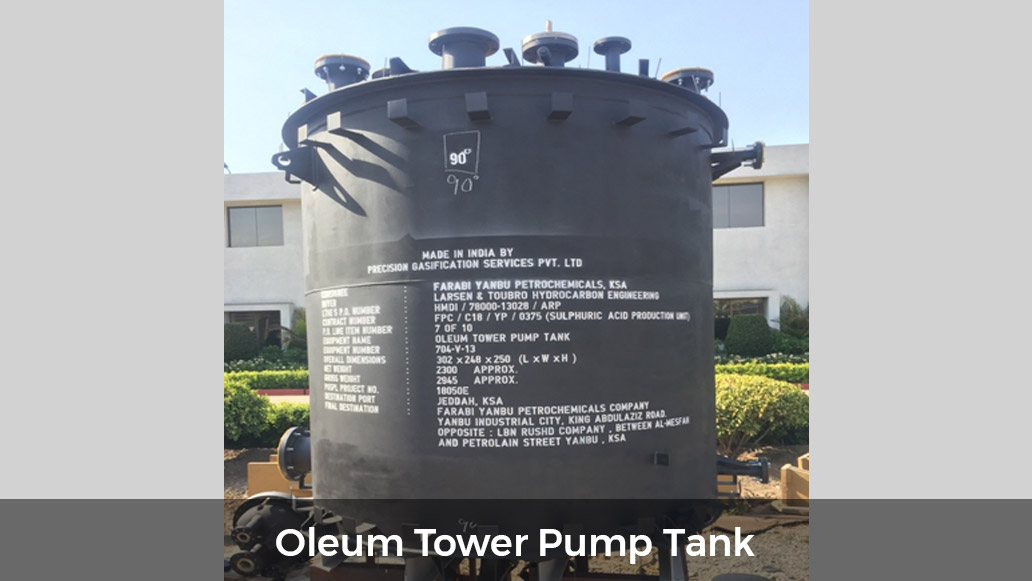

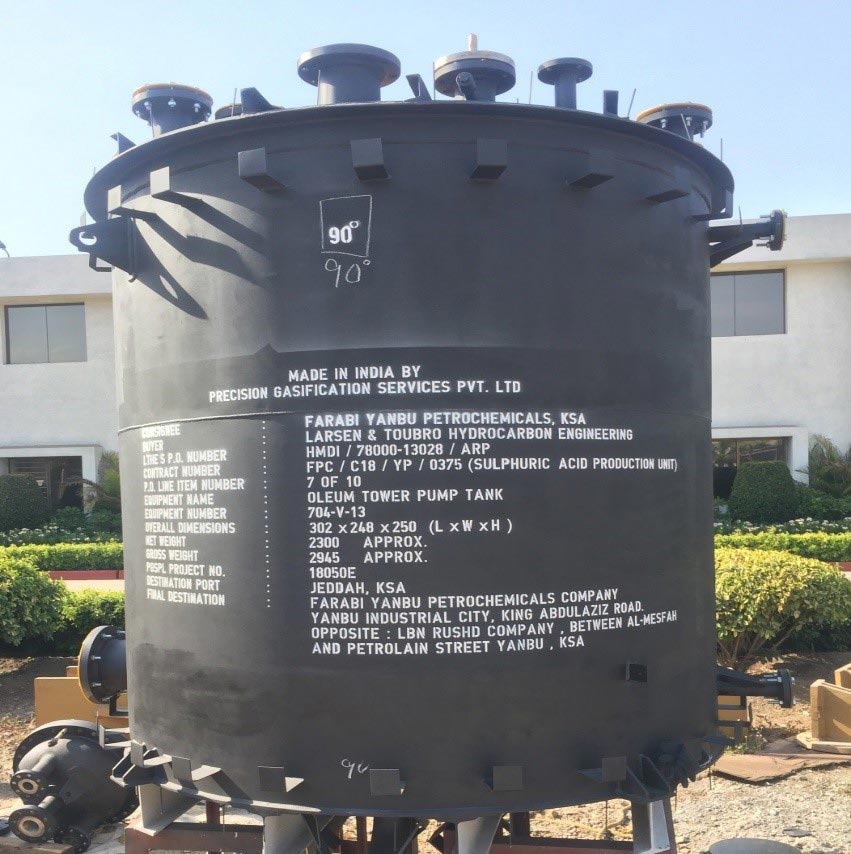

- Oleum Tower Pump Tank: Grade SS304L, Dia 2M, 6mm Thk, 2.2M Long, weight 2.5 MT
- Mist Eliminator Drum Tank: Grade SS304L, Dia 1.1, 6mm Thk, 3.5M Long, weight 2 MT
